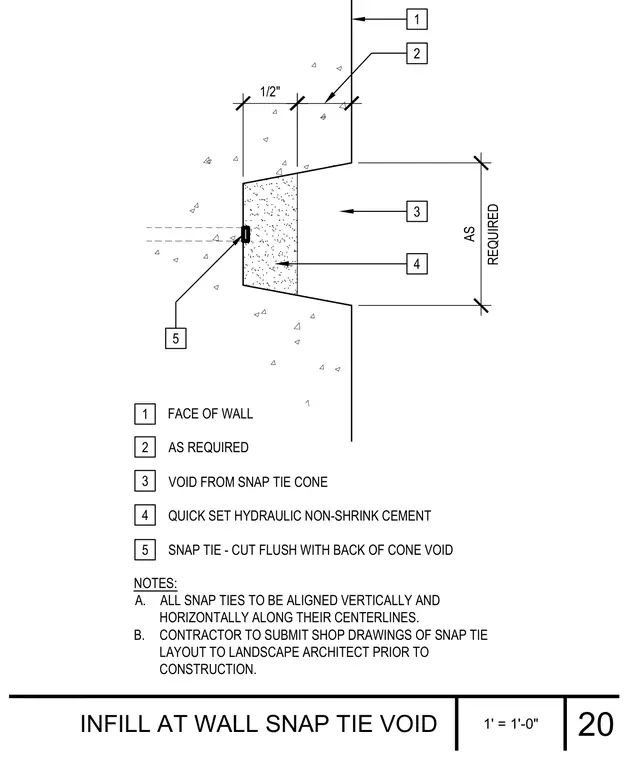

Concrete wall snap tie void patched with quick set hydraulic non-shrink cement over a cut snap tie. The snap tie is cut flush with the back of the cone void, which is then filled with quick set hydraulic non-shrink cement to match the face of the wall. All snap ties must be aligned vertically and horizontally along their centerlines, and the contractor must submit shop drawings of the layout to the landscape architect prior to construction.
1/2" AS REQUIRED 1 2 3 4 5 NOTES: A. ALL SNAP TIES TO BE ALIGNED VERTICALLY AND HORIZONTALLY ALONG THEIR CENTERLINES. B. CONTRACTOR TO SUBMIT SHOP DRAWINGS OF SNAP TIE LAYOUT TO LANDSCAPE ARCHITECT PRIOR TO CONSTRUCTION. FACE OF WALL AS REQUIRED VOID FROM SNAP TIE CONE QUICK SET HYDRAULIC NON-SHRINK CEMENT SNAP TIE - CUT FLUSH WITH BACK OF CONE VOID 1 2 3 4 5 20 INFILL AT WALL SNAP TIE VOID 1' = 1'-0"
