Landscape · L-482Z9

Spray Head Assembly

Materials

About this detail

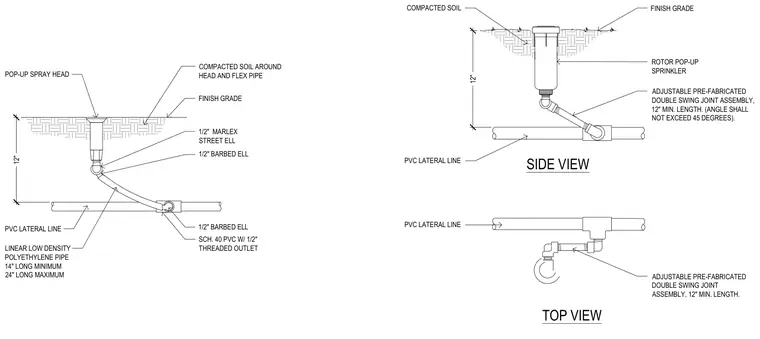

A pop-up spray head or rotor sprinkler connects to a schedule forty PVC lateral line through an adjustable pre-fabricated double swing joint assembly with a minimum length of twelve inches. The assembly incorporates a one-half-inch Marlex street ell, one-half-inch barbed ells, and linear low-density polyethylene pipe ranging from fourteen inches minimum to twenty-four inches maximum in length. The sprinkler body is surrounded by compacted soil beneath the finish grade, with swing joint angles restricted to a maximum of forty-five degrees.
