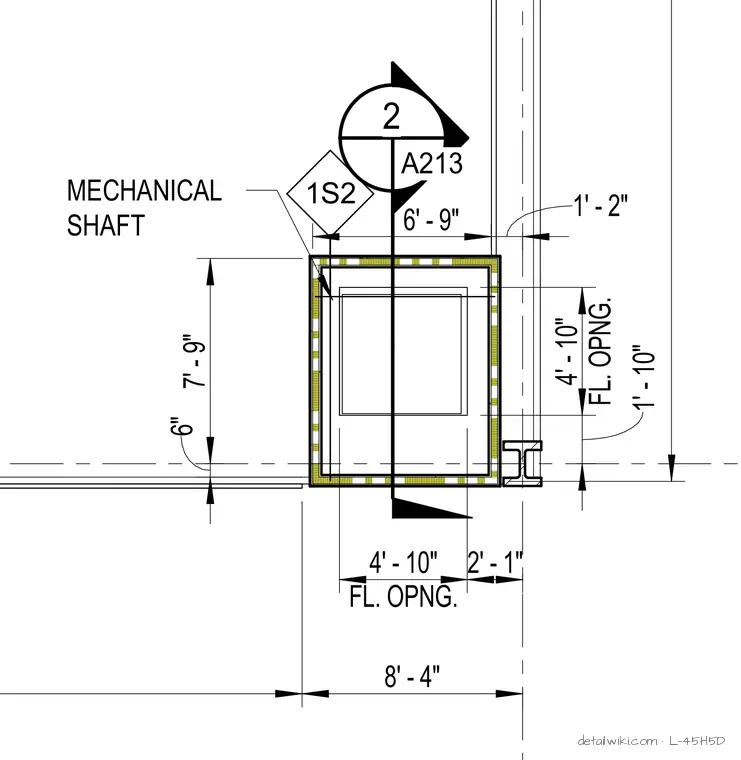

Text on the drawing
1S2 MECHANICAL SHAFT 8' - 4" 2 A213 1' - 10" FL. OPNG. 4' - 10" FL. OPNG. 4' - 10" 2' - 1" 6" 7' - 9" 6' - 9" 1' - 2"
