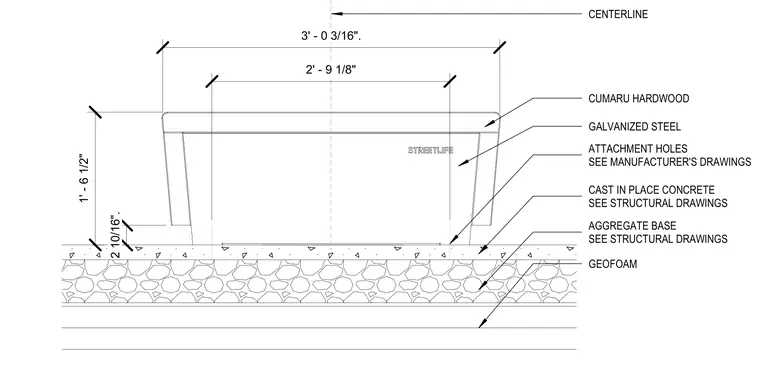

A solid skirt bench is constructed from cumaru hardwood and galvanized steel, featuring attachment holes sized per manufacturer's drawings. The bench rests on a cast-in-place concrete foundation supported by an aggregate base layer over geofoam.
3' - 0 3/16". 1' - 6 1/2" 2 10/16". CUMARU HARDWOOD GALVANIZED STEEL ATTACHMENT HOLES SEE MANUFACTURER'S DRAWINGS CAST IN PLACE CONCRETE SEE STRUCTURAL DRAWINGS AGGREGATE BASE SEE STRUCTURAL DRAWINGS GEOFOAM 2' - 9 1/8" CENTERLINE
