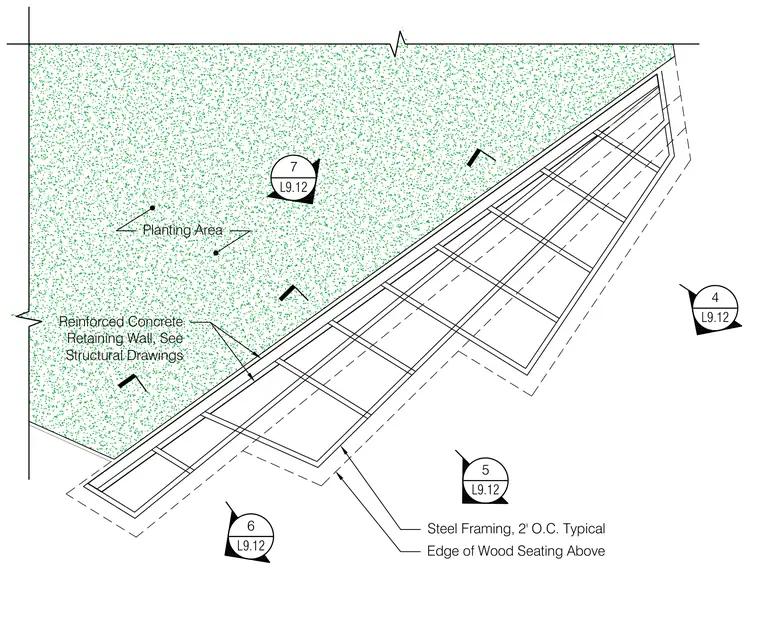

Wood seating framing is supported by steel framing spaced at two feet on center typical. The steel assembly runs adjacent to a reinforced concrete retaining wall with dimensions sized per structural drawings. A planting area is positioned behind the concrete wall edge. The edge of the wood seating above aligns with the underlying steel grid framework.
4 L9.12 5 L9.12 6 L9.12 7 L9.12 Planting Area Edge of Wood Seating Above Steel Framing, 2' O.C. Typical Reinforced Concrete Retaining Wall, See Structural Drawings
