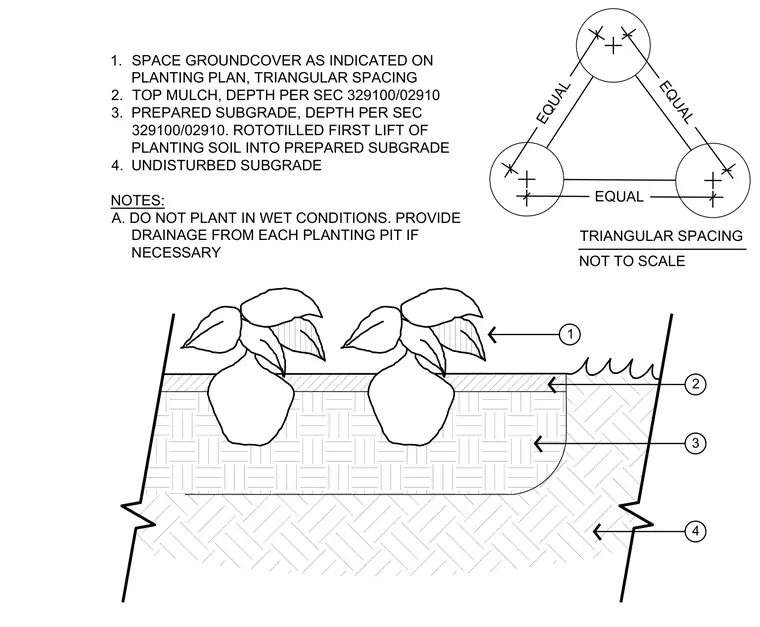

Groundcover is spaced in a triangular pattern per the planting plan with equal spacing dimensions. A top layer of mulch is placed over prepared planting soil. The first lift of planting soil is rototilled into the prepared subgrade above undisturbed native soil. Planting must not occur in wet conditions and proper drainage must be provided from each planting pit as necessary.
1. SPACE GROUNDCOVER AS INDICATED ON PLANTING PLAN, TRIANGULAR SPACING 2. TOP MULCH, DEPTH PER SEC 329100/02910 3. PREPARED SUBGRADE, DEPTH PER SEC 329100/02910. ROTOTILLED FIRST LIFT OF PLANTING SOIL INTO PREPARED SUBGRADE 4. UNDISTURBED SUBGRADE NOTES: A. DO NOT PLANT IN WET CONDITIONS. PROVIDE DRAINAGE FROM EACH PLANTING PIT IF NECESSARY EQUAL TRIANGULAR SPACING EQUAL NOT TO SCALE EQUAL 1 2 3 4
