Landscape · L-3T6G2

Existing Section A

Units: imperial
Sheet: LO-E6.0.2
Discipline: Landscape

Text on the drawing

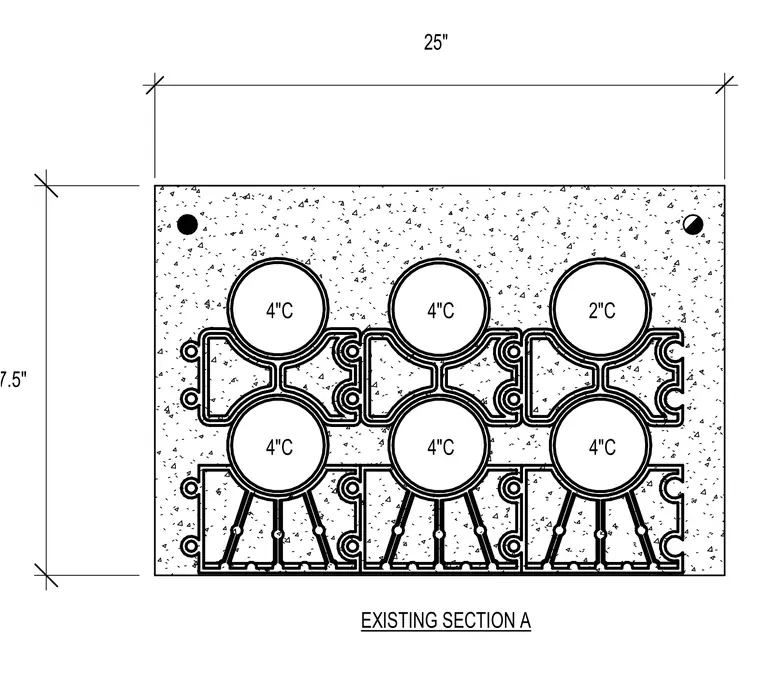

4"C 4"C 4"C 4"C 4"C 2"C 17.5" 25" EXISTING SECTION A
