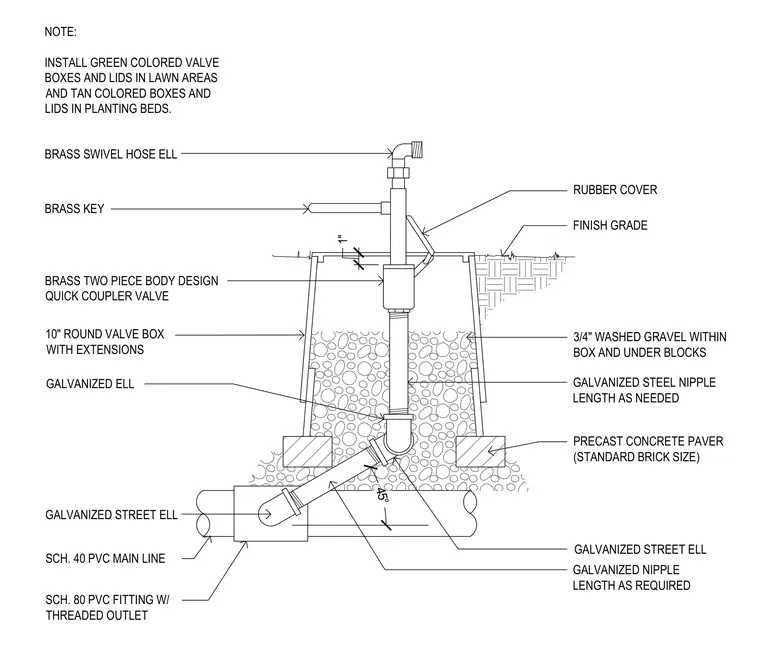

A quick coupler valve with a two-piece brass body design connects to a schedule 40 PVC main line via galvanized steel nipples and elbows. The valve assembly sits inside a ten-inch round valve box with extensions, bedded in three-quarter-inch washed gravel that also runs under precast concrete pavers set at standard brick size. A brass swivel hose ell and rubber cover mount to the top of the valve below finish grade, operated with a brass key. Green colored valve boxes and lids are installed in lawn areas and tan colored boxes and lids in planting beds.
1" 45° BRASS SWIVEL HOSE ELL BRASS KEY BRASS TWO PIECE BODY DESIGN QUICK COUPLER VALVE 10" ROUND VALVE BOX WITH EXTENSIONS GALVANIZED ELL GALVANIZED STREET ELL GALVANIZED STREET ELL SCH. 40 PVC MAIN LINE SCH. 80 PVC FITTING W/ THREADED OUTLET FINISH GRADE RUBBER COVER 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) GALVANIZED STEEL NIPPLE LENGTH AS NEEDED GALVANIZED NIPPLE LENGTH AS REQUIRED NOTE: INSTALL GREEN COLORED VALVE BOXES AND LIDS IN LAWN AREAS AND TAN COLORED BOXES AND LIDS IN PLANTING BEDS.
