Landscape · L-3NTGM

Calsense Automatic Controller

Elements

About this detail

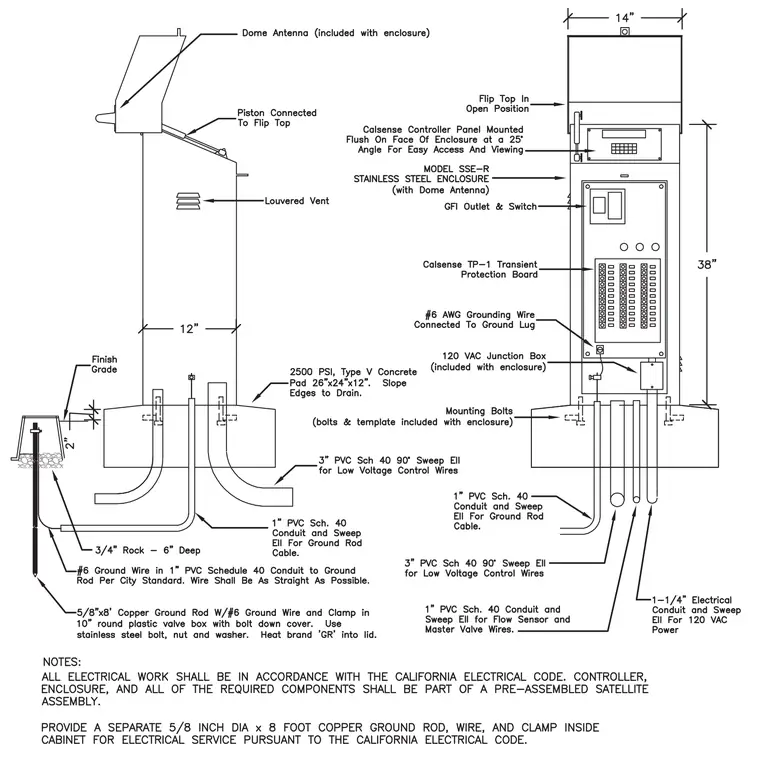

The Calsense model SSE-R stainless steel enclosure mounts on a twenty-six by twenty-four by twelve-inch concrete pad constructed from two thousand five hundred PSI, Type V concrete with sloped edges to drain. Mounting bolts and a template are included with the enclosure, anchored into the concrete pad. The enclosure features a dome antenna, a flip top held by a piston, louvered vents, a GFI outlet and switch, a Calsense controller panel mounted flush at a twenty-five-degree angle, and a TP-one transient protection board. A one hundred twenty VAC junction box connects underneath the enclosure. Conduit routing includes three-inch PVC schedule forty ninety-degree sweep elbows for low-voltage control wires, a one-inch PVC schedule forty conduit and sweep elbow for ground rod cable, one-inch PVC schedule forty conduit for flow sensor and master valve wires, and one-inch and one-quarter electrical conduit for one hundred twenty VAC power. A five-eighths-inch by eight-foot copper ground rod is installed inside a ten-inch round plastic valve box with a bolt-down cover, connected via a number six American Wire Gauge grounding wire routed through a one-inch PVC schedule forty conduit.
