An irrigation controller is mounted at a height of six feet to finish grade with a low profile antenna positioned on top. A half-inch galvanized electrical metallic tubing or intermediate metal conduit connects the power supply to the unit. A one-inch galvanized conduit routes flow sensor wires into the garage. A two-and-a-half-inch intermediate metal conduit carries low voltage control wiring from the automatic controller to electric control valves. A copper ground wire enclosed in PVC conduit connects the system to the building ground.

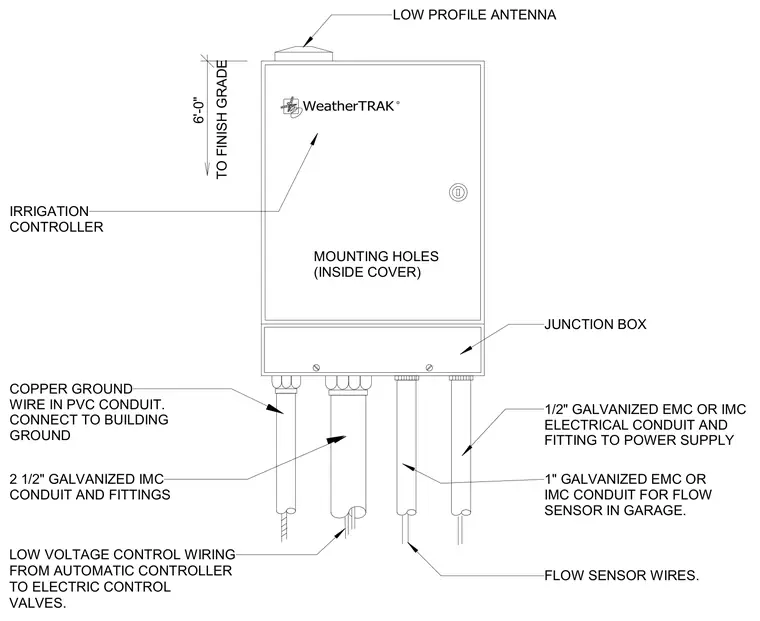

WeatherTRAK R 1/2" GALVANIZED EMC OR IMC ELECTRICAL CONDUIT AND FITTING TO POWER SUPPLY 1" GALVANIZED EMC OR IMC CONDUIT FOR FLOW SENSOR IN GARAGE. 6'-0" TO FINISH GRADE IRRIGATION CONTROLLER COPPER GROUND WIRE IN PVC CONDUIT. CONNECT TO BUILDING GROUND 2 1/2" GALVANIZED IMC CONDUIT AND FITTINGS LOW VOLTAGE CONTROL WIRING FROM AUTOMATIC CONTROLLER TO ELECTRIC CONTROL VALVES. LOW PROFILE ANTENNA FLOW SENSOR WIRES. JUNCTION BOX MOUNTING HOLES (INSIDE COVER)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
