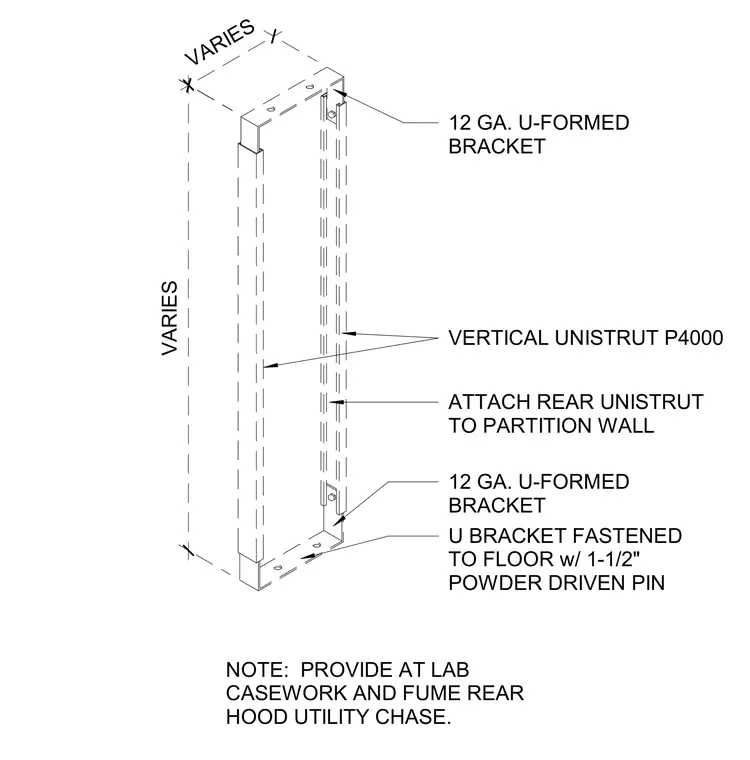

Vertical P4000 Unistrut channels form the primary vertical support, bounded at the top and bottom by twelve-gauge U-formed brackets. The rear Unistrut is attached directly to the partition wall, while the bottom U-bracket is fastened to the floor using one-and-a-half-inch powder-driven pins. This assembly is specified for use at laboratory casework and fume hood rear utility chases.
VARIES VARIES 12 GA. U-FORMED BRACKET VERTICAL UNISTRUT P4000 ATTACH REAR UNISTRUT TO PARTITION WALL U BRACKET FASTENED TO FLOOR w/ 1-1/2" POWDER DRIVEN PIN 12 GA. U-FORMED BRACKET NOTE: PROVIDE AT LAB CASEWORK AND FUME REAR HOOD UTILITY CHASE.
