Landscape · L-3M3WX

Floor Level

Units: imperial
Sheet: LO-S1.2.1
Discipline: Landscape

Materials

Steel

Elements

Columns Connections / Plates Floors / Slabs

Text on the drawing

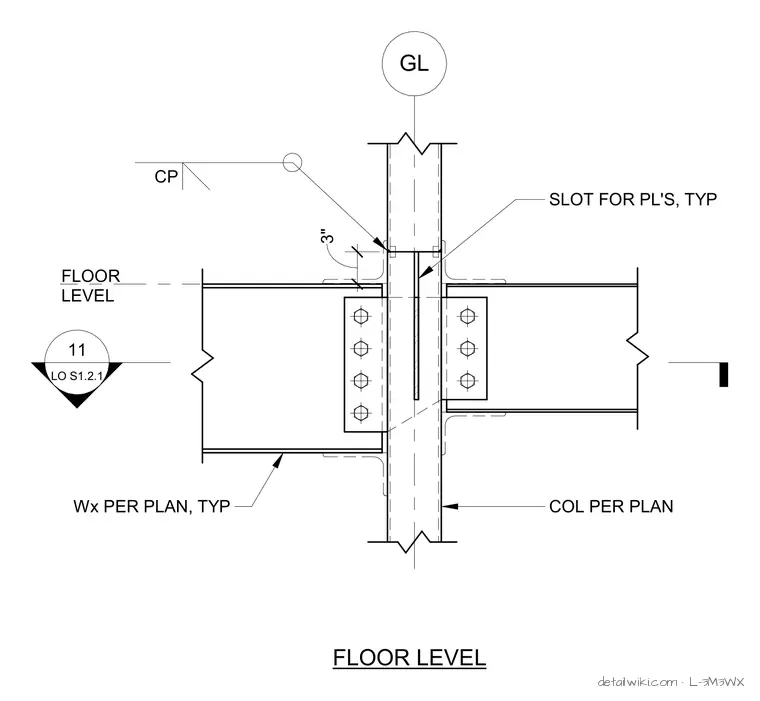

Wx PER PLAN, TYP COL PER PLAN SLOT FOR PL'S, TYP 3" CP FLOOR LEVEL GL FLOOR LEVEL 11 LO S1.2.1
