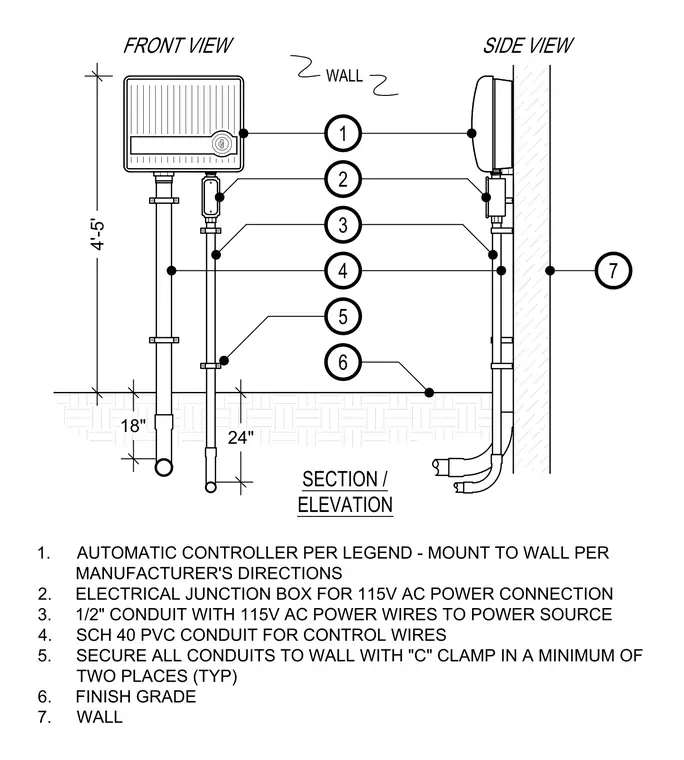

An automatic controller is mounted directly to the wall per the manufacturer's directions at a height of four feet five inches above finish grade. An electrical junction box is positioned below the controller for the one hundred fifteen volt alternating current power connection. A half-inch conduit carries the power wires to the source while a schedule forty PVC conduit houses the control wires. All conduits are secured to the wall using C-clamps in a minimum of two places typically.
WALL 1 2 3 4 1. AUTOMATIC CONTROLLER PER LEGEND - MOUNT TO WALL PER MANUFACTURER'S DIRECTIONS 2. ELECTRICAL JUNCTION BOX FOR 115V AC POWER CONNECTION 3. 1/2" CONDUIT WITH 115V AC POWER WIRES TO POWER SOURCE 4. SCH 40 PVC CONDUIT FOR CONTROL WIRES 5. SECURE ALL CONDUITS TO WALL WITH "C" CLAMP IN A MINIMUM OF TWO PLACES (TYP) 6. FINISH GRADE 7. WALL 5 SIDE VIEW FRONT VIEW 4'-5' 7 18" 6 24" SECTION / ELEVATION
