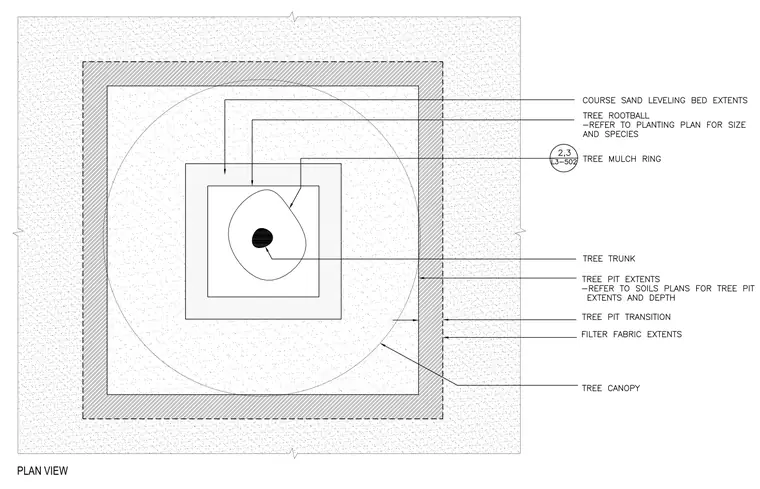

A tree planting pit layout includes the tree trunk, rootball, and surrounding tree mulch ring. The assembly incorporates a coarse sand leveling bed, tree pit transition zones, and filter fabric extents. The tree rootball and tree pit dimensions are referenced to the planting and soils plans for specific size and depth requirements.
