Landscape · L-3FGJA

Tree Watering System

Elements

About this detail

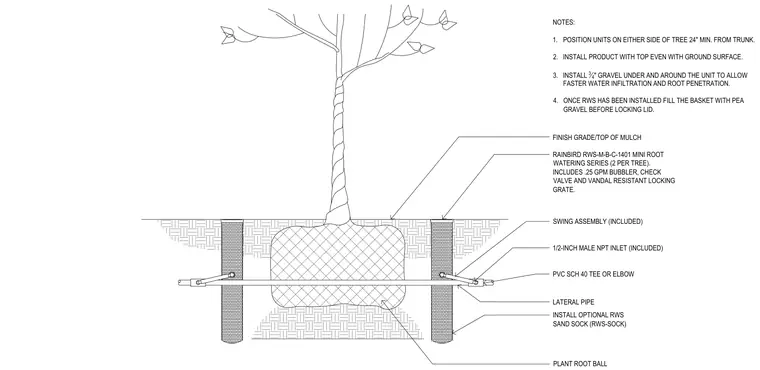

Two subsurface root watering units are positioned on either side of the tree, spaced at least twenty-four inches minimum from the trunk with the top installed even with the finish grade and mulch surface. Three-quarter-inch gravel is placed under and around the unit to facilitate faster water infiltration and root penetration. Each Rain Bird mini root watering series unit includes a zero-point-twenty-five gallon per minute bubbler, check valve, and vandal-resistant locking grate. A swing assembly with a half-inch male national pipe thread inlet connects the unit to a polyvinyl chloride schedule forty lateral pipe tee or elbow. The basket is filled with pea gravel before locking the lid, and an optional sand sock is installed around the unit.
