Landscape · L-3FAPP

Tee Rail Planter Edge

Materials

Steel Brick Metal (misc.)

Elements

Roofs Floors / Slabs Drainage Site / Paving

Connections

Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

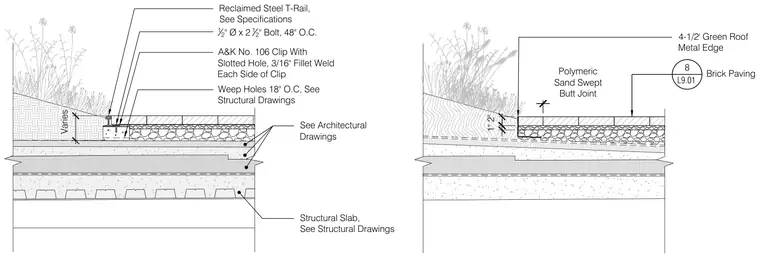

A reclaimed steel tee rail acts as a planter edge restraint, anchored with half-inch diameter by two-and-a-half-inch bolts spaced at forty-eight inches on center. The rail secures to an A&K number 106 clip with a slotted hole, attached with three-sixteenth-inch fillet welds on each side of the clip. Weep holes are provided at eighteen inches on center. Brick paving with polymeric sand-swept butt joints abuts the assembly alongside a four-and-a-half-inch green roof system with a metal edge, bearing over layers sized per architectural and structural drawings.
