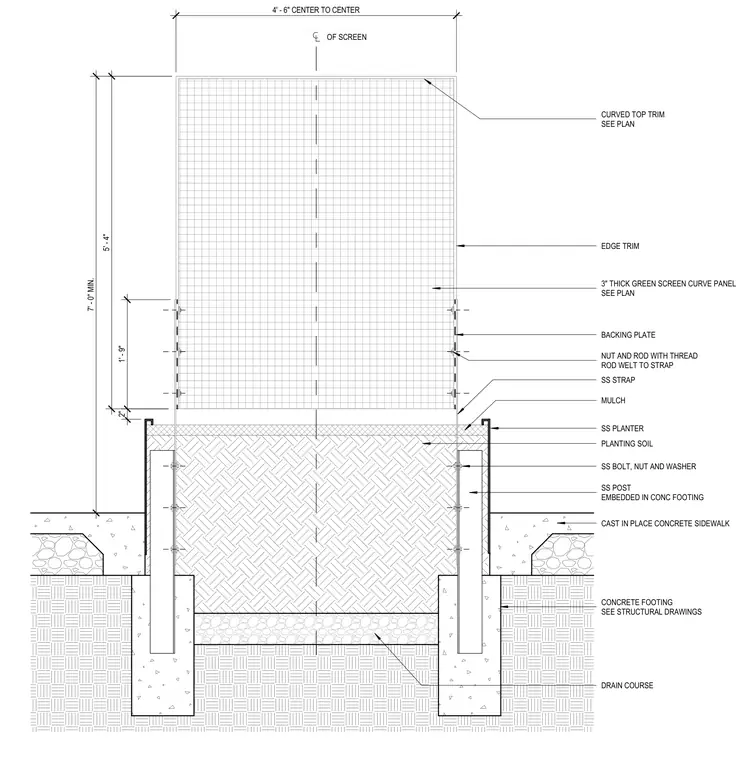

A stainless steel green screen assembly is mounted above a raised concrete planter. The structure anchors to stainless steel posts embedded directly into concrete footings that coordinate with adjacent cast-in-place concrete sidewalks. The green screen utilizes a three-inch thick curved panel secured with stainless steel straps, backing plates, threaded rods, nuts, and washers. Planter fill includes a drain course, planting soil, and a mulch layer retained by stainless steel planter walls.
5' - 4" SS PLANTER PLANTING SOIL CAST IN PLACE CONCRETE SIDEWALK DRAIN COURSE SS POST EMBEDDED IN CONC FOOTING MULCH OF SCREEN EDGE TRIM CONCRETE FOOTING SEE STRUCTURAL DRAWINGS 1' - 9" 2" 3" THICK GREEN SCREEN CURVE PANEL SEE PLAN SS STRAP BACKING PLATE NUT AND ROD WITH THREAD ROD WELT TO STRAP SS BOLT, NUT AND WASHER 7' - 0" MIN. 4' - 6" CENTER TO CENTER CURVED TOP TRIM SEE PLAN
