An emergency safety shower and eyewash combination unit is mounted against a wall with four mounting holes, featuring a polished chrome brass shower head positioned eight feet above the finished floor. The eyewash station includes four gentle spray outlet heads over a stainless steel bowl and skirt, activated by a heavy-duty stainless steel panic bar and a chrome-plated brass stay-open ball valve. A one-inch iron pipe size union connects the supply piping, while a one-and-a-half-inch p-trap handles drainage below. An epoxy-coated cast aluminum flag handle provides secondary activation, and an alarm with ANSI compliant identification is positioned adjacent to the unit.

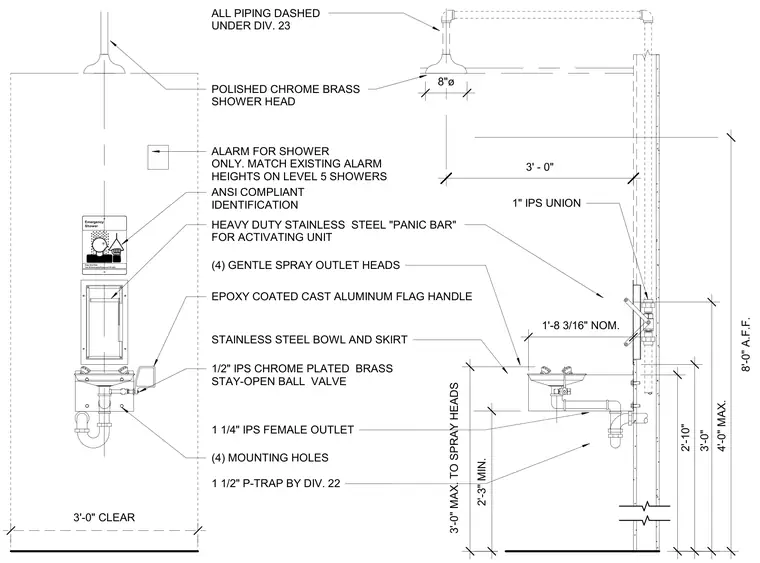

2'-10" 3'-0" 2'-3" MIN. 8'-0" A.F.F. 4'-0" MAX. 8"ø 3'-0" MAX. TO SPRAY HEADS 1" IPS UNION 1'-8 3/16" NOM. (4) GENTLE SPRAY OUTLET HEADS EPOXY COATED CAST ALUMINUM FLAG HANDLE STAINLESS STEEL BOWL AND SKIRT 1/2" IPS CHROME PLATED BRASS STAY-OPEN BALL VALVE 1 1/4" IPS FEMALE OUTLET POLISHED CHROME BRASS SHOWER HEAD ALL PIPING DASHED UNDER DIV. 23 (4) MOUNTING HOLES 1 1/2" P-TRAP BY DIV. 22 ANSI COMPLIANT IDENTIFICATION HEAVY DUTY STAINLESS STEEL "PANIC BAR" FOR ACTIVATING UNIT 3'-0" CLEAR Emergency Shower Keep Area Clear Test All Emergency Equipment W eekly 3' - 0" ALARM FOR SHOWER ONLY. MATCH EXISTING ALARM HEIGHTS ON LEVEL 5 SHOWERS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
