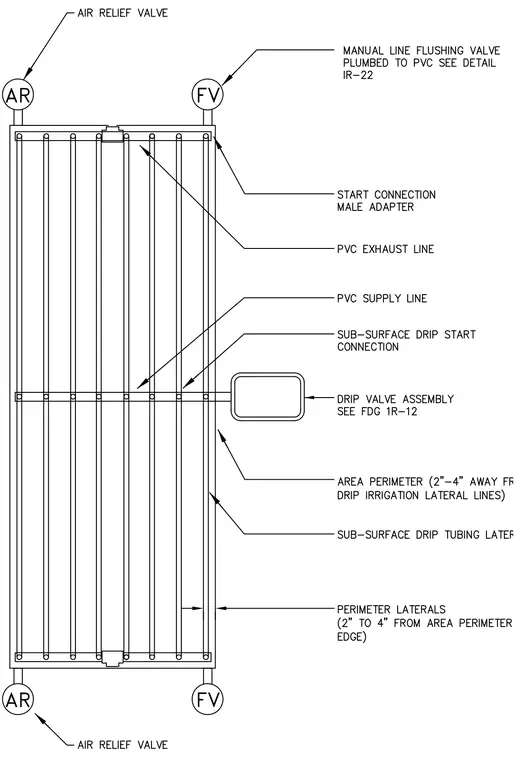

This irrigation layout features a series of sub-surface drip tubing laterals connected to a central polyvinyl chloride supply line and a perimeter exhaust line. The system includes air relief valves at the corners and a manual line flushing valve plumbed to polyvinyl chloride piping. A drip valve assembly connects to the supply line to regulate flow. Perimeter laterals are positioned two to four inches from the area perimeter edge to ensure uniform coverage.
