Landscape · L-3A4TY

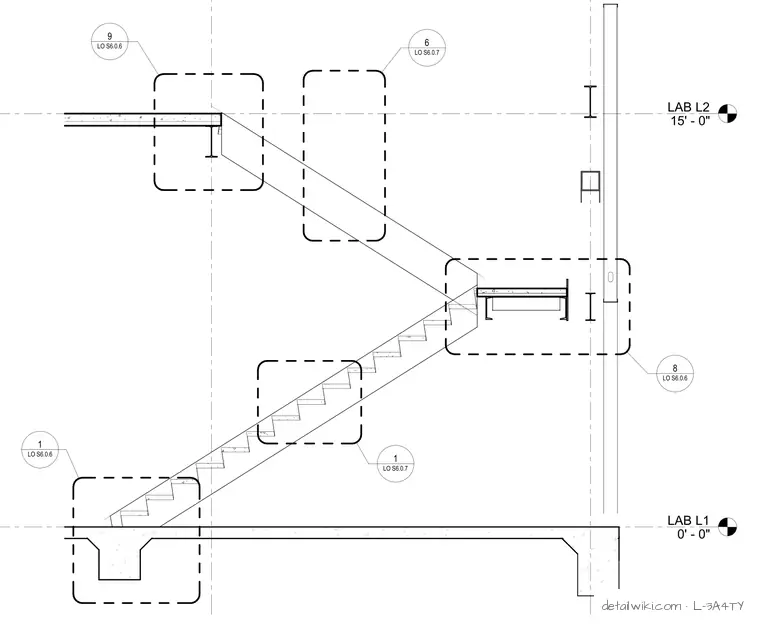

Stair Section At Inner Stringer

Units: imperial
Sheet: LO-S6.0.4
Discipline: Landscape

Elements

Stairs

Text on the drawing

LAB L1 0' - 0" LAB L2 15' - 0" LO S6.0.6 1 LO S6.0.6 9 LO S6.0.6 8 LO S6.0.7 1 LO S6.0.7 6
