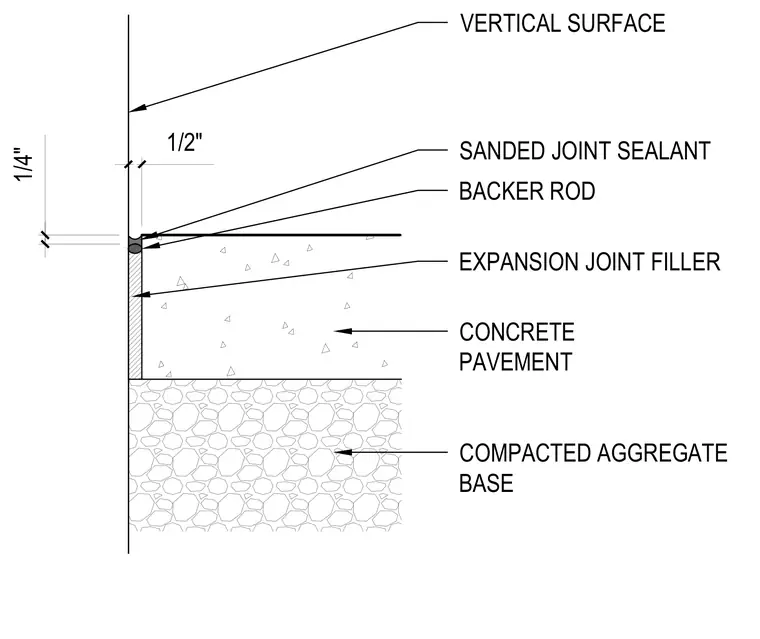

Concrete pavement bears upon a compacted aggregate base adjacent to a vertical building or structure surface. A one-half-inch expansion joint filler separates the concrete slab from the vertical surface for the full depth of the pavement. A backer rod sits in the joint opening one-quarter inch below the top of the concrete, sealed with sanded joint sealant.
1/2" 1/4" CONCRETE PAVEMENT COMPACTED AGGREGATE BASE EXPANSION JOINT FILLER SANDED JOINT SEALANT BACKER ROD VERTICAL SURFACE \ T— A 4. A 4 A. 4 4 A 4 A 4 ■A A A A 4 2- 022 O' 1 /O.'l 7i -\
