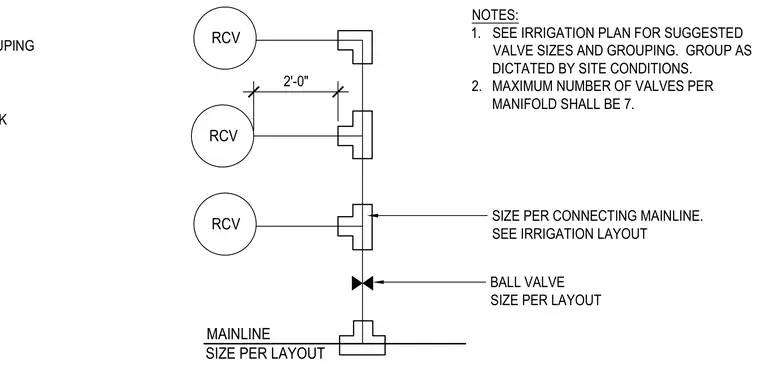

An irrigation valve grouping layout connects remote control valves to a mainline with a two-foot spacing between components. A one-inch ball valve is provided for each valve grouping. The maximum number of valves per manifold is limited to seven. Valve and mainline sizes are determined per the irrigation layout and site conditions.
1" BALL VALVE, PROVIDE ONE FOR EACH VALUE GROUPING PRESSURE REGULATING QUICK RCV MAINLINE NOTES: 1. SEE IRRIGATION PLAN FOR SUGGESTED VALVE SIZES AND GROUPING. GROUP AS DICTATED BY SITE CONDITIONS. 2. MAXIMUM NUMBER OF VALVES PER MANIFOLD SHALL BE 7. SIZE PER LAYOUT 2'-0" SIZE PER CONNECTING MAINLINE. SEE IRRIGATION LAYOUT BALL VALVE SIZE PER LAYOUT RCV RCV
