Landscape · L-34SMN

Raised Concrete Curb with Paving and Planting Area

Materials

Elements

About this detail

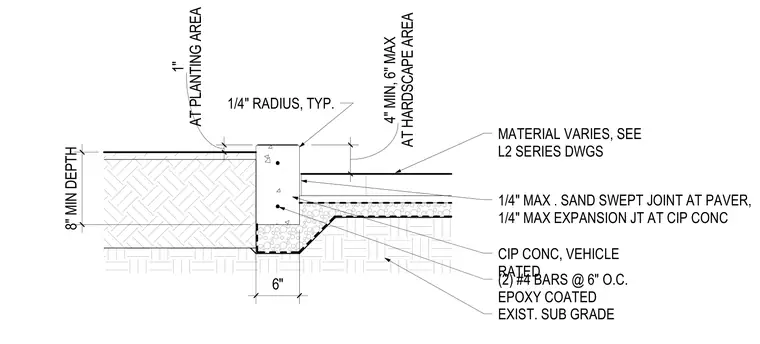

A raised cast-in-place concrete curb is reinforced with two epoxy-coated number four bars at six inches on center. The curb is vehicle-rated and features a typical one-quarter inch radius edge. It transitions between a planting area requiring an eight-inch minimum depth and a hardscape area with variable sub-grade material and sand-swept joints at the pavers. A one-quarter inch maximum expansion joint is provided at the cast-in-place concrete, bearing on existing sub-grade material.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
