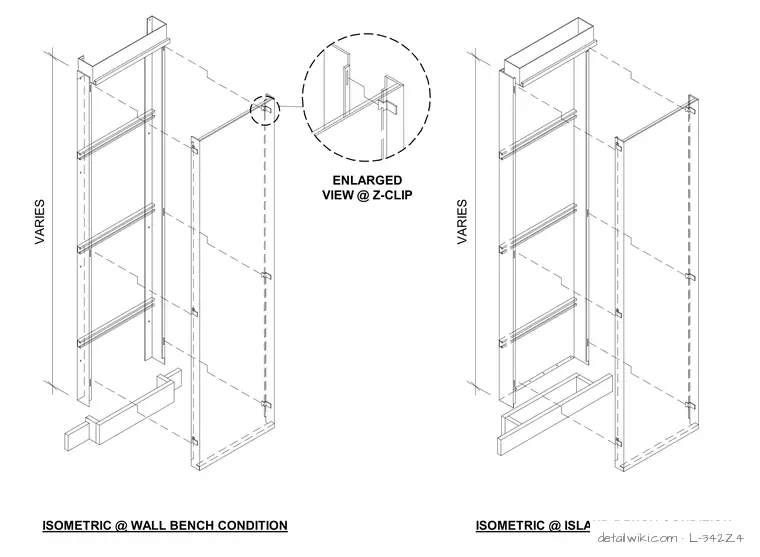

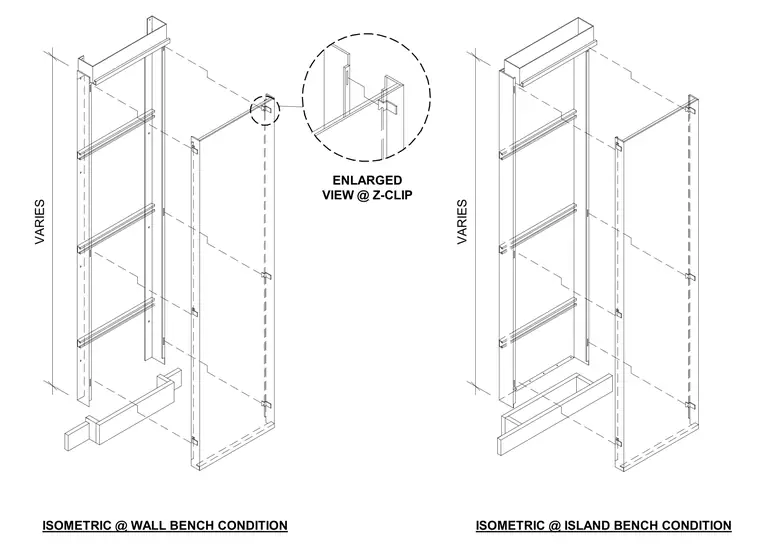

The assembly details a pipe drop enclosure featuring wall bench and island bench conditions with varying vertical dimensions. An enlarged view highlights the z-clip connection detail used to anchor the enclosure framework. Framework members consist of cold-formed metal framing components tied together with z-clips.
VARIES VARIES ENLARGED VIEW @ Z-CLIP ISOMETRIC @ WALL BENCH CONDITION ISOMETRIC @ ISLAND BENCH CONDITION
