A reinforced concrete paving slab is cast over compacted subgrade with a thickened edge profile. The concrete slab features number three reinforcing bars placed at twenty-four inches on center each way and centered in the slab thickness. Color and finish are specified per the construction plan.

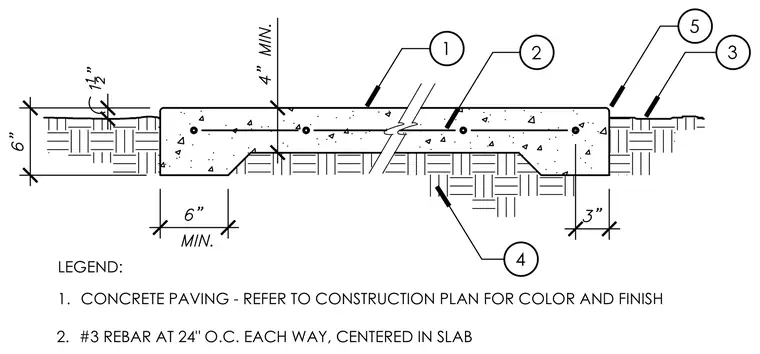

LEGEND: CONCRETE PAVING - REFER TO CONSTRUCTION PLAN FOR COLOR AND FINISH #3 REBAR AT 24" O.C. EACH WAY, CENTERED IN SLAB 1 4 2 3 5 1. 2.
