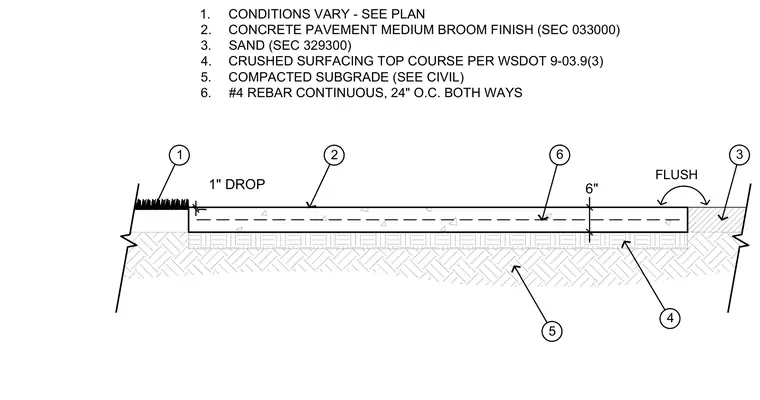

The assembly features a six-inch concrete pavement with a medium broom finish reinforced by number four rebar continuous at twenty-four inches on center both ways. The concrete slab rests on a crushed surfacing top course per WSDOT specification 9-03.9(3) over a compacted subgrade. A sand layer and flush or dropped edge conditions interface with the surrounding grade per plan.
6" FLUSH 1" DROP 1 2 6 5 4 3 1. CONDITIONS VARY - SEE PLAN 2. CONCRETE PAVEMENT MEDIUM BROOM FINISH (SEC 033000) 3. SAND (SEC 329300) 4. CRUSHED SURFACING TOP COURSE PER WSDOT 9-03.9(3) 5. COMPACTED SUBGRADE (SEE CIVIL) 6. #4 REBAR CONTINUOUS, 24" O.C. BOTH WAYS
