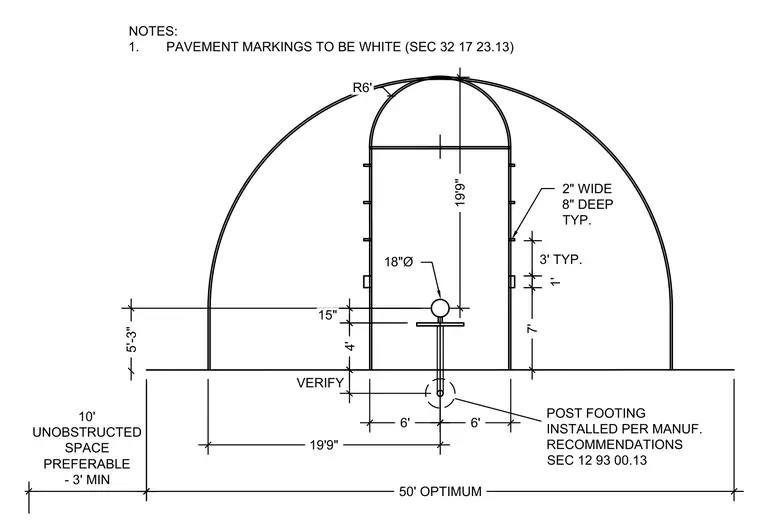

Basketball court striping layout featuring official dimensions and spatial clearances. Pavement markings are specified as white lines measuring two inches wide by eight inches deep typically, with a six-foot radius arc at the key. The post footing requires an eighteen-inch diameter installation per manufacturer recommendations. An optimum fifty-foot total space width is provided with ten feet of unobstructed space preferable and three feet minimum.
50' OPTIMUM 5'-3" 4' 19'9" 19'9" 10' UNOBSTRUCTED SPACE PREFERABLE - 3' MIN 7' 1' 3' TYP. 15" R6' 6' 6' VERIFY POST FOOTING INSTALLED PER MANUF. RECOMMENDATIONS SEC 12 93 00.13 18"Ø 2" WIDE 8" DEEP TYP. NOTES: 1. PAVEMENT MARKINGS TO BE WHITE (SEC 32 17 23.13)
