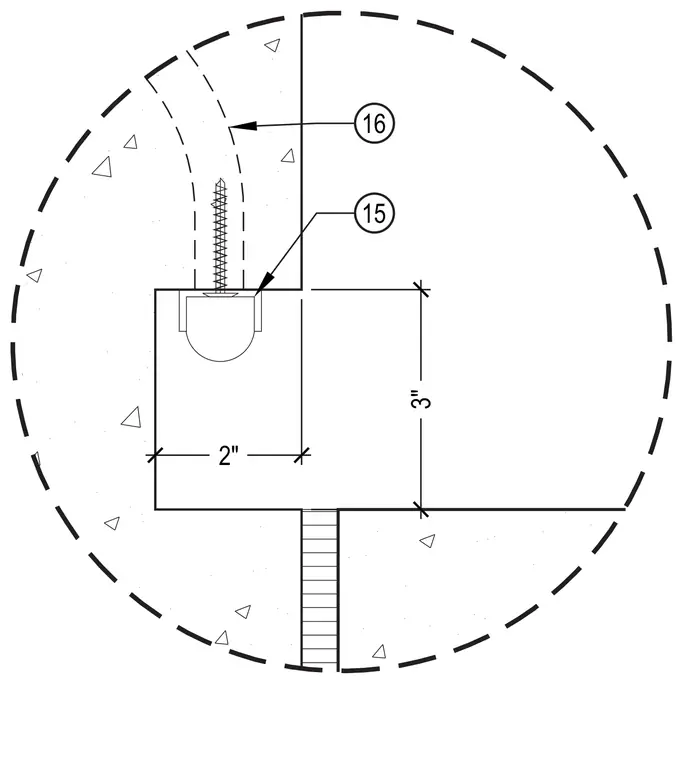

An LED light strip is recessed into a three-inch by two-inch concrete notch formed within a cast-in-place concrete wall. The linear fixture is secured with fasteners anchored directly into the concrete substrate. Wiring runs through a concealed conduit embedded within the wall assembly.
