Landscape · L-2R53B

Vine Emitters

Elements

About this detail

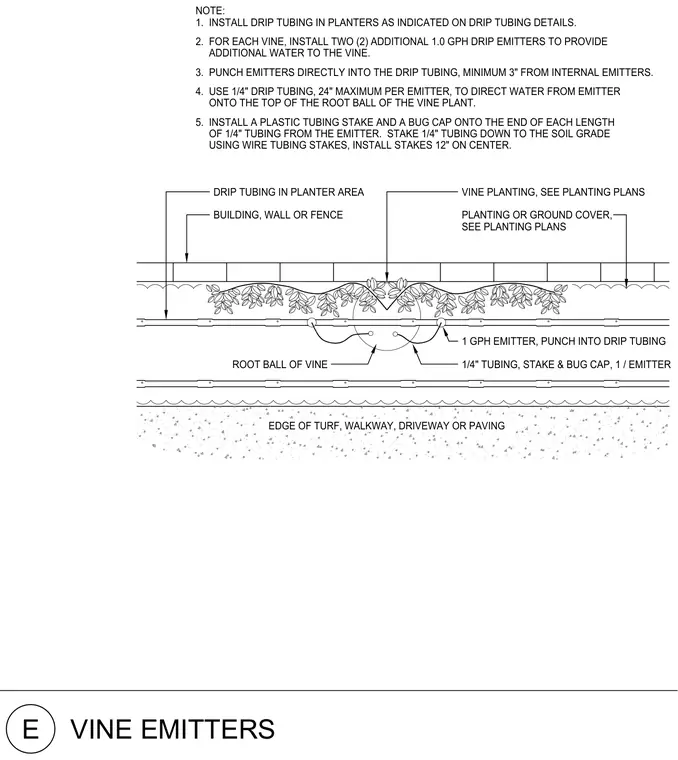

Install main drip tubing in the planter area and punch two additional 1.0 gallon per hour emitters directly into the tubing a minimum of 3 inches from internal emitters for each vine. Connect a maximum 24-inch length of 1/4-inch drip tubing to each emitter to direct water onto the top of the root ball of the vine plant. Terminate each length of 1/4-inch tubing with a plastic tubing stake and a bug cap. Stake the 1/4-inch tubing down to the soil grade using wire tubing stakes installed at 12 inches on center.
