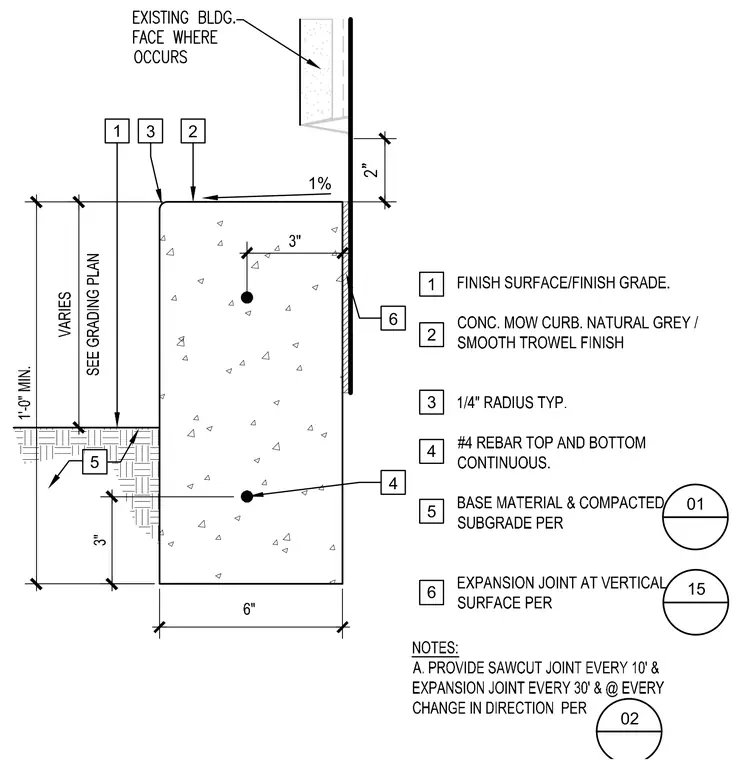

A concrete mow curb positions against the face of an existing building. The curb measures six inches wide with a variable height, maintaining a minimum of one foot and a one percent slope at the top surface. Reinforcement comprises continuous number four rebar at the top and bottom. An expansion joint places at the vertical surface against the existing building. The assembly rests on compacted subgrade and base material.
1 01 NOTES: A. PROVIDE SAWCUT JOINT EVERY 10' & EXPANSION JOINT EVERY 30' & @ EVERY CHANGE IN DIRECTION PER 02 FINISH SURFACE/FINISH GRADE. CONC. MOW CURB. NATURAL GREY / SMOOTH TROWEL FINISH 1/4" RADIUS TYP. #4 REBAR TOP AND BOTTOM CONTINUOUS. BASE MATERIAL & COMPACTED SUBGRADE PER EXPANSION JOINT AT VERTICAL SURFACE PER 3" 1% VARIES SEE GRADING PLAN 1'-0" MIN. 1 3 2 4 3" 6 5 6" 15 2 3 4 5 6
