A forged brass valve body with fine control needle valve and four-arm handle mounts to the fume hood side wall. A panel mounted brass flange with an angle serrated hose end connects through a three-eighths inch IPS mounting shank with locknut and washer. Concealed plumbing is pre-piped at the factory.

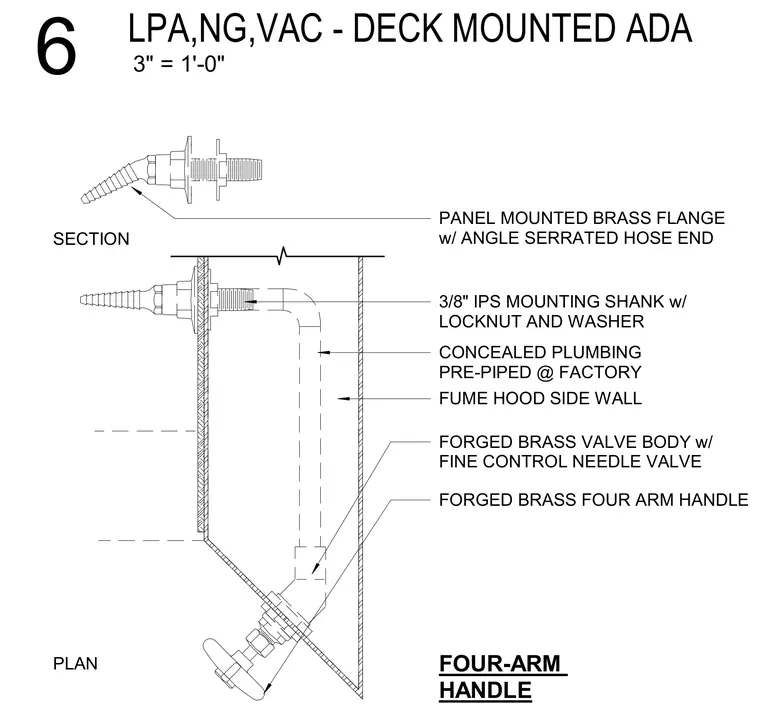

3/8" IPS MOUNTING SHANK w/ LOCKNUT AND WASHER FORGED BRASS VALVE BODY w/ FINE CONTROL NEEDLE VALVE FORGED BRASS FOUR ARM HANDLE FUME HOOD SIDE WALL CONCEALED PLUMBING PRE-PIPED @ FACTORY FOUR-ARM HANDLE PANEL MOUNTED BRASS FLANGE w/ ANGLE SERRATED HOSE END PLAN SECTION 3" = 1'-0" 6 LPA,NG,VAC - DECK MOUNTED ADA
