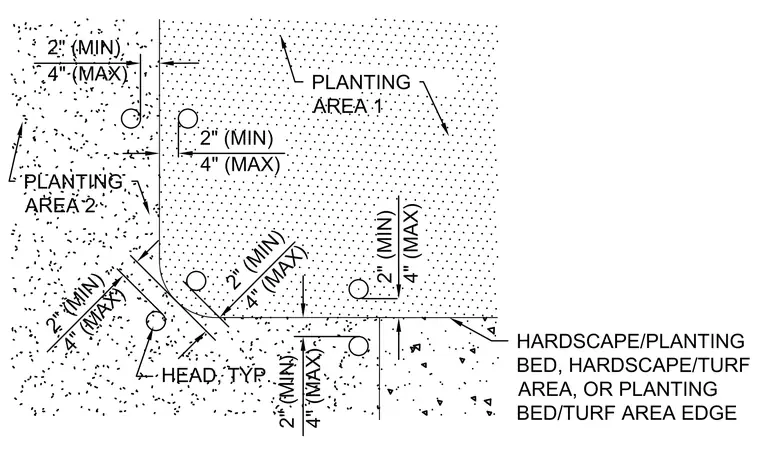

Irrigation spray heads require a minimum setback of two inches and a maximum setback of four inches from the edge of hardscape, turf, or planting bed boundaries. This spacing applies to all spray head locations along the perimeter of planting areas and hardscape transitions. The layout ensures consistent coverage while maintaining the required clearance from edge conditions.
