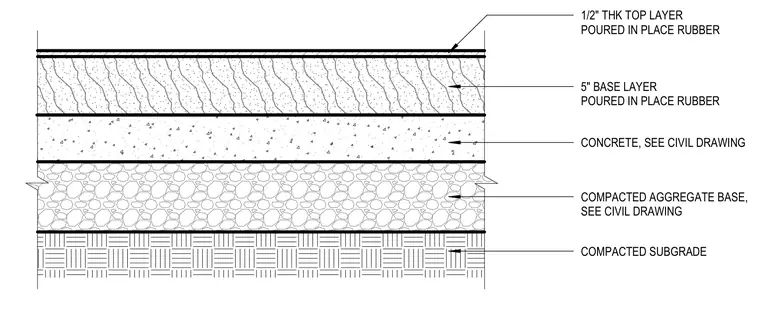

A one-half-inch thick top layer of poured-in-place rubber is installed over a five-inch base layer of poured-in-place rubber. The rubber system rests upon a concrete layer sized per civil drawings. Below the concrete sits a compacted aggregate base and a compacted subgrade, both detailed on civil drawings.
1/2" THK TOP LAYER POURED IN PLACE RUBBER 5" BASE LAYER POURED IN PLACE RUBBER CONCRETE, SEE CIVIL DRAWING COMPACTED AGGREGATE BASE, SEE CIVIL DRAWING COMPACTED SUBGRADE
