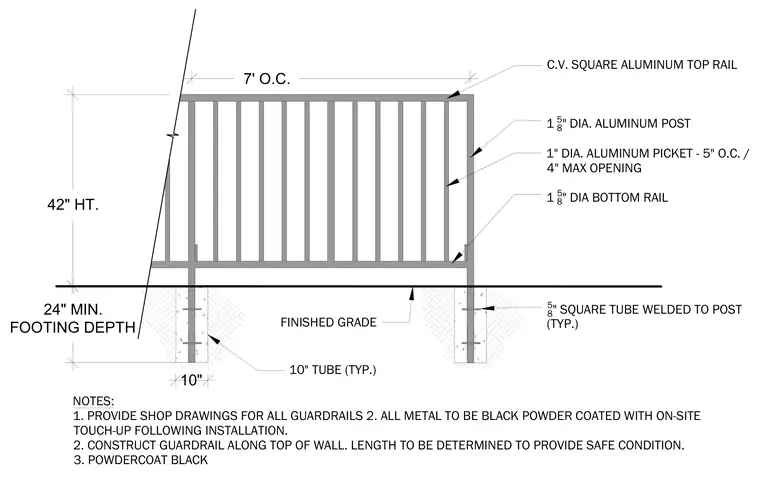

The assembly features a forty-two-inch high aluminum guardrail constructed along the top of a wall above finished grade. One and five-eighths-inch diameter aluminum posts spaced at seven feet on center anchor into ten-inch diameter concrete footings with a twenty-four-inch minimum depth. One-inch diameter vertical aluminum pickets are spaced at five inches on center with a maximum opening of four inches. A square aluminum top rail and a one and five-eighths-inch diameter bottom rail complete the framing, utilizing five-eighths-inch square tubes welded to the posts typically. All metal is finished with a black powder coat applied in the shop, with on-site touch-up following installation.
NOTES: 1. PROVIDE SHOP DRAWINGS FOR ALL GUARDRAILS 2. ALL METAL TO BE BLACK POWDER COATED WITH ON-SITE TOUCH-UP FOLLOWING INSTALLATION. 2. CONSTRUCT GUARDRAIL ALONG TOP OF WALL. LENGTH TO BE DETERMINED TO PROVIDE SAFE CONDITION. 3. POWDERCOAT BLACK FINISHED GRADE 24" MIN. FOOTING DEPTH 7' O.C. 10" 42" HT. 1 5 8 " DIA BOTTOM RAIL 1" DIA. ALUMINUM PICKET - 5" O.C. / 4" MAX OPENING 1 5 8 " DIA. ALUMINUM POST C.V. SQUARE ALUMINUM TOP RAIL 5 8 " SQUARE TUBE WELDED TO POST (TYP.) 10" TUBE (TYP.)
