Landscape · L-2KD8N

Flr. Opng.

Units: imperial
Sheet: L2
Discipline: Landscape

Elements

Floors / Slabs Roof / Floor Openings

Text on the drawing

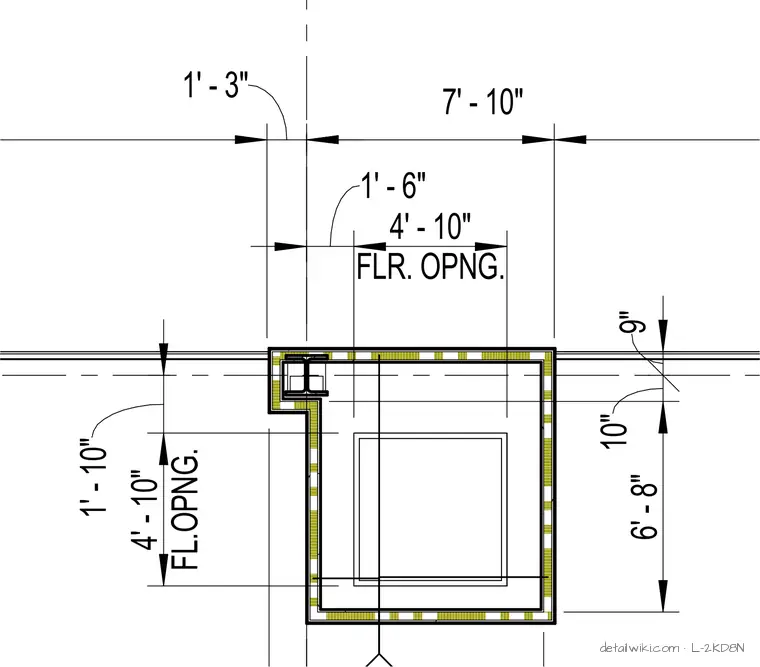

7' - 10" 1' - 3" 1' - 10" FL.OPNG. 4' - 10" 1' - 6" FLR. OPNG. 4' - 10" 9" 10" 6' - 8"
