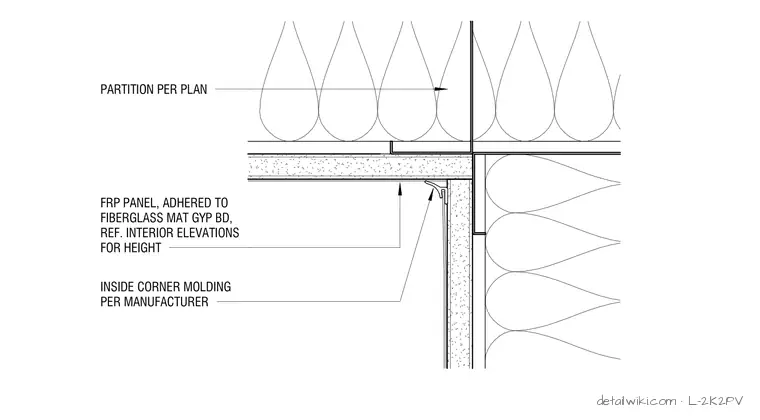

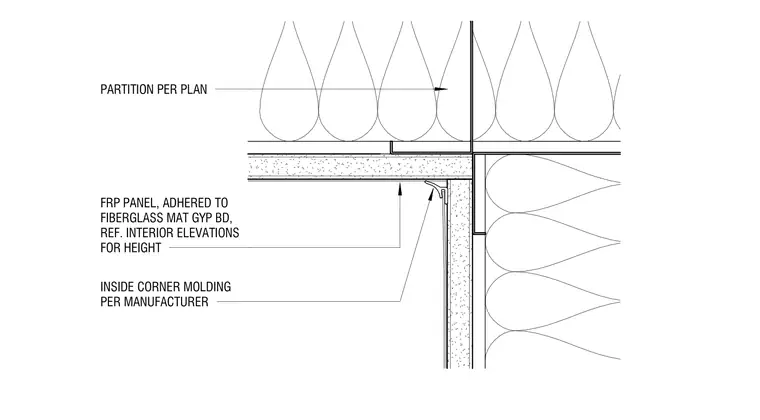

Fiberglass reinforced plastic panels adhere to fiberglass mat gypsum board substrates to form an interior wall finish. An inside corner molding specified by the manufacturer finishes the vertical intersection between perpendicular partition walls. Interior elevations dictate the overall wall height while partition framing is sized per plan.
INSIDE CORNER MOLDING PER MANUFACTURER FRP PANEL, ADHERED TO FIBERGLASS MAT GYP BD, REF. INTERIOR ELEVATIONS FOR HEIGHT PARTITION PER PLAN
