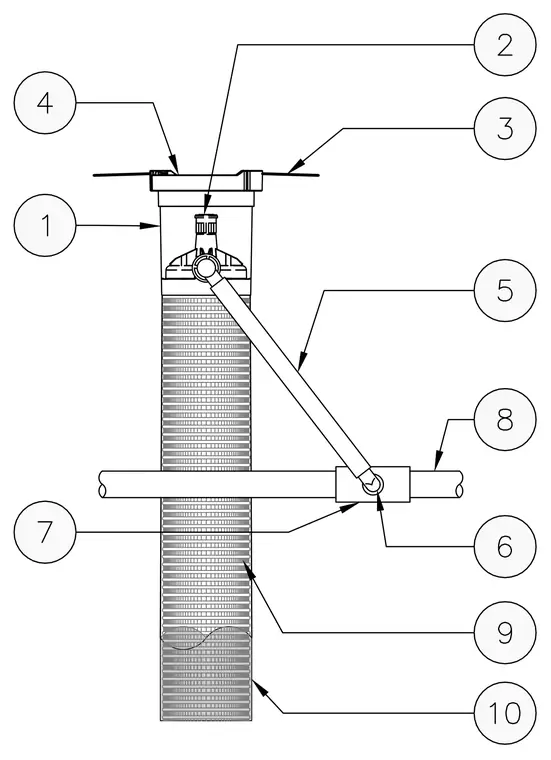

A pop-up sprinkler head is secured in a housing and connected at its base to a swing joint assembly using an adjustable arm. The swing arm connects to the main lateral piping via a threaded tee fitting. A vertical riser pipe extends downward from the sprinkler connection into a corrugated sleeve or protective sleeve enclosure.
