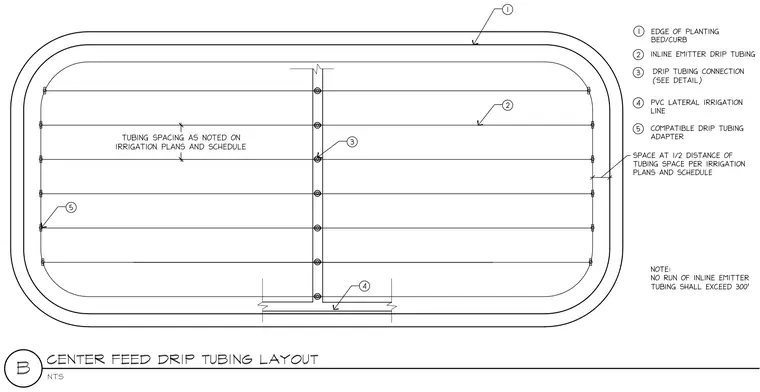

A center feed drip tubing layout is positioned inside a planting bed with an edge curb. Inline emitter drip tubing runs horizontally across the bed and connects via drip tubing adapters to a central PVC lateral irrigation line. Tubing spacing follows the layout notes, with edge spacing set at one-half the standard distance. Individual runs of inline emitter tubing are restricted to a maximum length of 300 feet.
