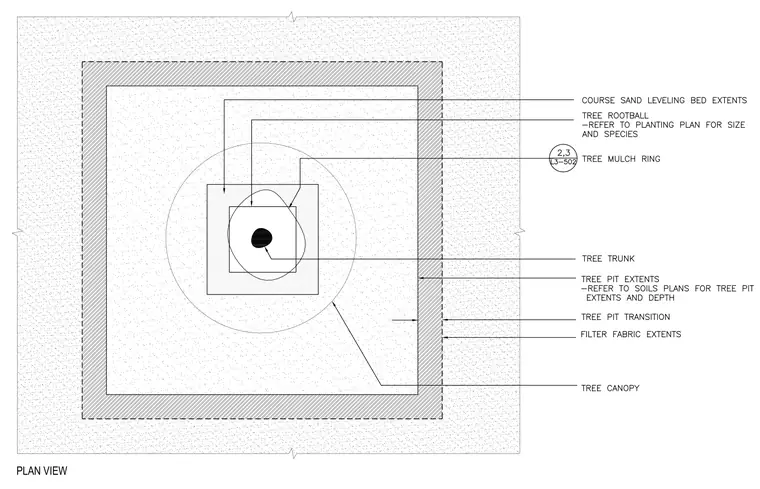

This plan view details the layout and extents for a tree planting pit, centering on the tree trunk and rootball which are sized and specified per the planting plan. Surrounding the rootball is a tree mulch ring and a course sand leveling bed. The outer extents include a tree pit transition zone, filter fabric extents, and the overall tree pit extents sized per soils plans for depth and width, along with the tree canopy reference line.
