Structural · L-26CB7

Typical Rod Hangers

Materials

Steel Timber / Wood

Elements

Anchors / Embeds Beams Connections / Plates Roofs

Connections

Timber / Mass-Timber Connection

About this detail

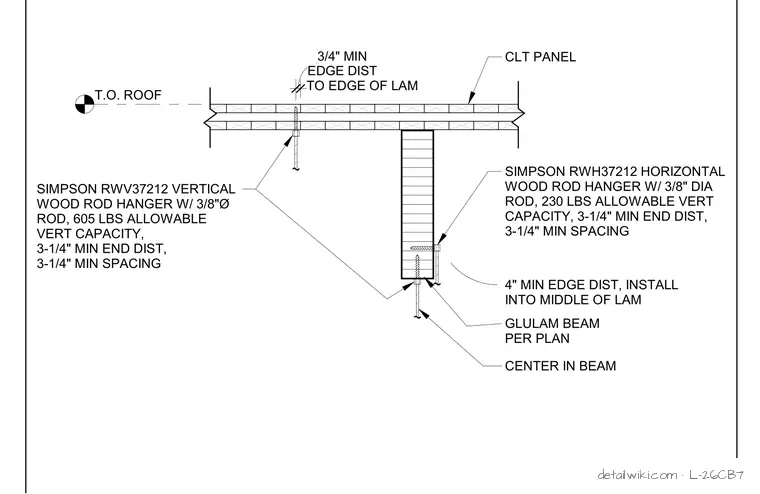

Typical rod hanger installations for roof structures utilizing cross-laminated timber panels and glulam beams sized per plan. A Simpson RWV37212 vertical wood rod hanger with a three-eighths-inch diameter rod is anchored with a three-quarter-inch minimum edge distance and three-and-a-quarter-inch minimum end distance and spacing, providing six hundred five pounds of allowable vertical capacity. A Simpson RWH37212 horizontal wood rod hanger with a three-eighths-inch diameter rod is installed into the middle of the lamination with a four-inch minimum edge distance, three-and-a-quarter-inch minimum end distance, and three-and-a-quarter-inch minimum spacing, offering two hundred thirty pounds of allowable vertical capacity. The rods are centered in the beam and extend downward from the top of the roof elevation.
