Landscape · L-25WRN

Shrub and Groundcover Plant Spacing Diagram

Elements

About this detail

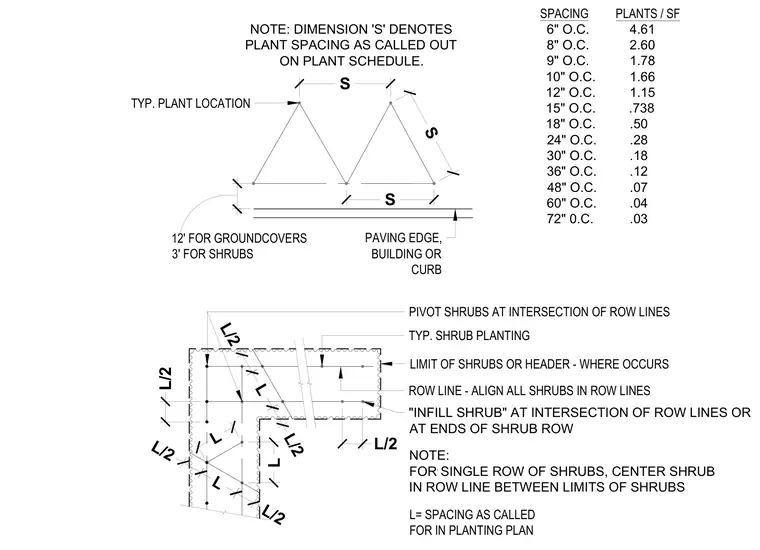

Standard layout and spacing geometry for shrub beds and groundcover planting. Plant locations are set along intersecting row lines with a spacing dimension 'S' and a half-spacing 'L/2' or 'L' offset from paving edges, buildings, or curbs. A companion density table provides multipliers for calculating plants per square foot based on spacings ranging from 6 inches to 72 inches on center. Single rows of shrubs are centered between the limits of the shrub bed, with infill shrubs placed at row intersections and ends.
