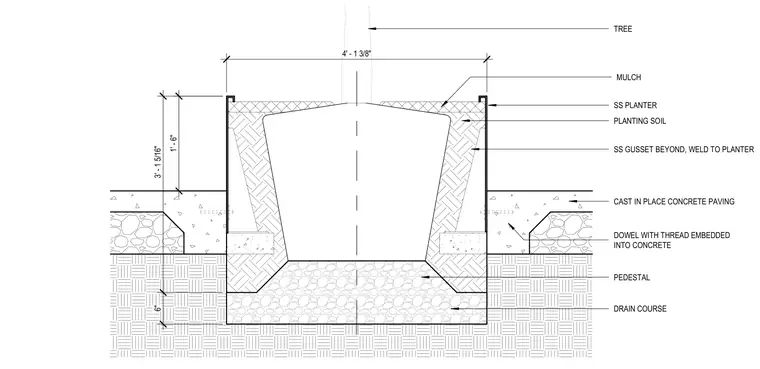

This cross section shows a raised stainless steel planter measuring four feet one and three-eighths inches wide with a one-foot six-inch soil depth. The planter features stainless steel walls supported by stainless steel gussets welded to the planter assembly. The interior contains planting soil topped with mulch around a tree. The structure bears on a pedestal and drain course, set adjacent to cast-in-place concrete paving with embedded threaded dowels.
3' - 1 5/16" 6" 4' - 1 3/8" 1' - 6" SS PLANTER PLANTING SOIL CAST IN PLACE CONCRETE PAVING DRAIN COURSE DOWEL WITH THREAD EMBEDDED INTO CONCRETE SS GUSSET BEYOND, WELD TO PLANTER MULCH TREE PEDESTAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
