Landscape · L-22N73

Irrigation Non-Pressure Lateral Line

About this detail

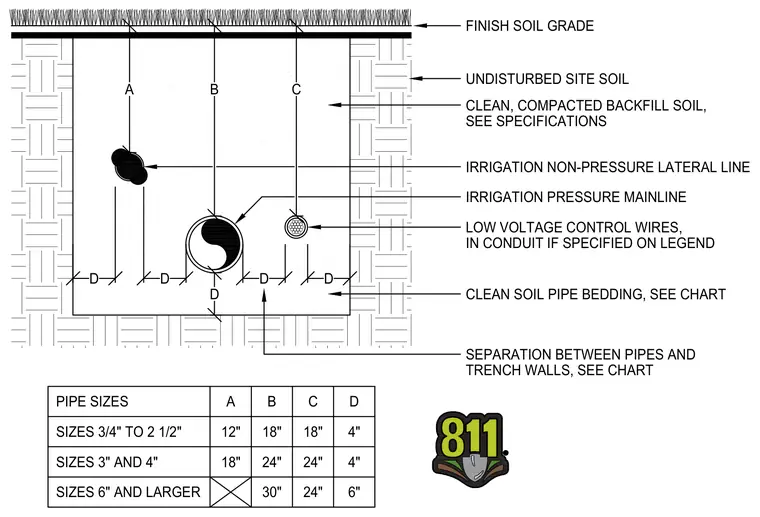

An irrigation trench detail shows the installation parameters for non-pressure lateral lines, pressure mainlines, and low voltage control wires set within undisturbed site soil. The assembly includes clean soil pipe bedding at the base and clean compacted backfill soil extending up to the finish soil grade. Separation dimensions and burial depths for pipe sizes ranging from 3/4 inch to 6 inches and larger are detailed in an embedded sizing chart. Low voltage control wires are housed in conduit as specified on the legend alongside the primary piping.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
