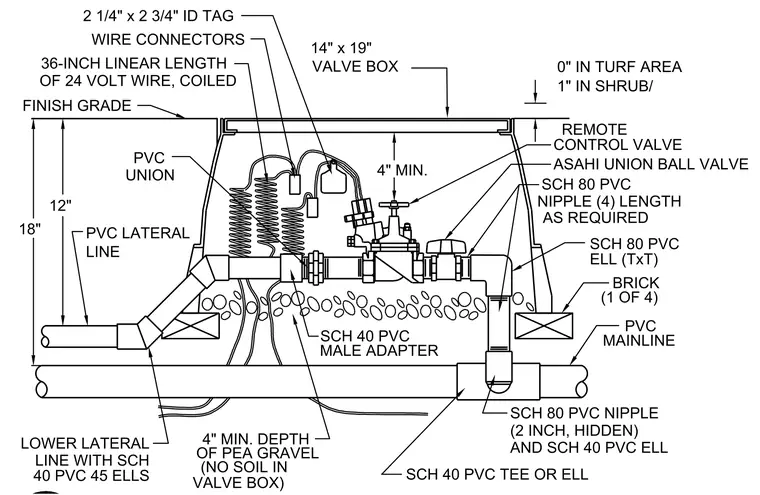

An irrigation valve box measuring fourteen by nineteen inches sets into finish grade with the top positioned zero inches in turf areas or one inch in shrub areas. The assembly houses a remote control valve and an Asahi union ball valve connected via schedule eighty PVC nipples and elbows to a schedule forty PVC mainline and lateral lines. A four-inch minimum depth of pea gravel fills the bottom of the box without soil. Wiring includes a twenty-four volt wire with a thirty-six-inch linear coiled length secured by wire connectors and a two-and-a-quarter by two-and-three-quarter-inch ID tag. Brick supports are placed at the base beneath the components.
SCH 40 PVC TEE OR ELL 40 PVC 45 ELLS LOWER LATERAL LINE WITH SCH 4" MIN. DEPTH OF PEA GRAVEL (NO SOIL IN VALVE BOX) PVC UNION PVC LATERAL LINE MALE ADAPTER SCH 40 PVC 4" MIN. OF 24 VOLT WIRE, COILED 2 1/4" x 2 3/4" ID TAG WIRE CONNECTORS 36-INCH LINEAR LENGTH FINISH GRADE SCH 80 PVC NIPPLE (2 INCH, HIDDEN) AND SCH 40 PVC ELL ASAHI UNION BALL VALVE BRICK (1 OF 4) MAINLINE PVC AS REQUIRED SCH 80 PVC ELL (TxT) SCH 80 PVC NIPPLE (4) LENGTH CONTROL VALVE 0" IN TURF AREA 1" IN SHRUB/ REMOTE 14" x 19" VALVE BOX 18" 12"
