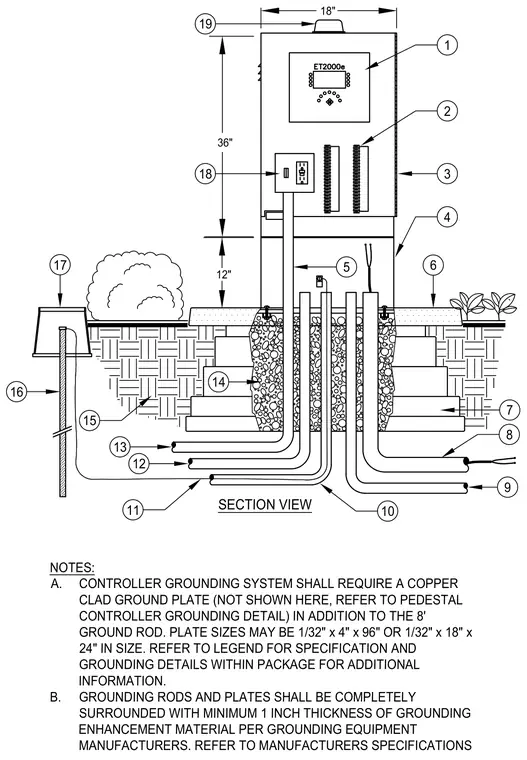

A pedestal mount controller unit rests on a concrete pad with incoming and outgoing conduits routed through the base. Grounding is provided via an eight-foot ground rod and a copper-clad ground plate completely surrounded by a minimum one-inch thickness of grounding enhancement material. The controller enclosure measures eighteen inches wide with a thirty-six-inch cabinet height mounted above a twelve-inch base. Conduits enter from underground trenches filled with compacted backfill materials.
NOTES: A. CONTROLLER GROUNDING SYSTEM SHALL REQUIRE A COPPER CLAD GROUND PLATE (NOT SHOWN HERE, REFER TO PEDESTAL CONTROLLER GROUNDING DETAIL) IN ADDITION TO THE 8' GROUND ROD. PLATE SIZES MAY BE 1/32" x 4" x 96" OR 1/32" x 18" x 24" IN SIZE. REFER TO LEGEND FOR SPECIFICATION AND GROUNDING DETAILS WITHIN PACKAGE FOR ADDITIONAL INFORMATION. B. GROUNDING RODS AND PLATES SHALL BE COMPLETELY SURROUNDED WITH MINIMUM 1 INCH THICKNESS OF GROUNDING ENHANCEMENT MATERIAL PER GROUNDING EQUIPMENT MANUFACTURERS. REFER TO MANUFACTURERS SPECIFICATIONS 36" 12" 18" SECTION VIEW 16 17 15 13 12 11 10 14 6 4 3 2 18 7 8 9 1 5 19
