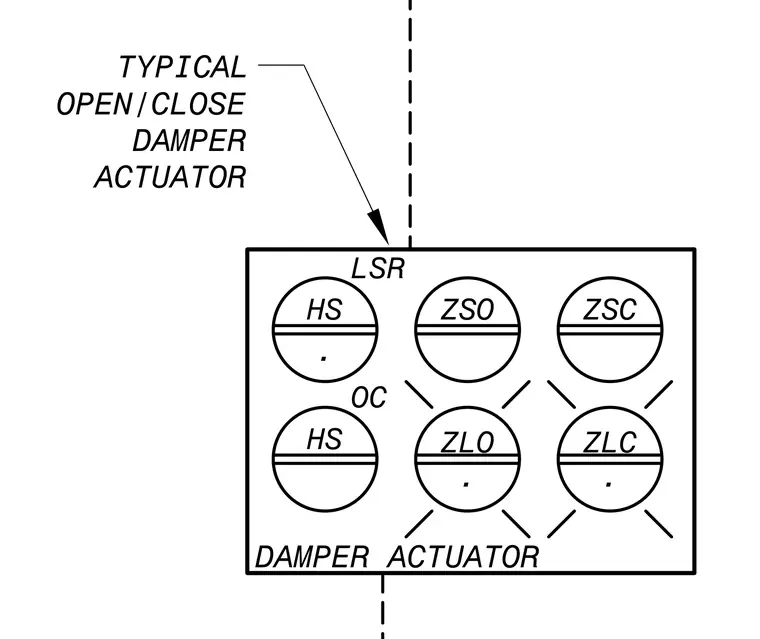

A typical open and close damper actuator configuration complete with control and status indicator points. Labeled terminals and status points include hand switch, open, closed, and limit switch positions.
TYPICAL OPEN/CLOSE DAMPER ACTUATOR HS OC DAMPER ACTUATOR ZSO ZSC HS . LSR . ZLO . ZLC
