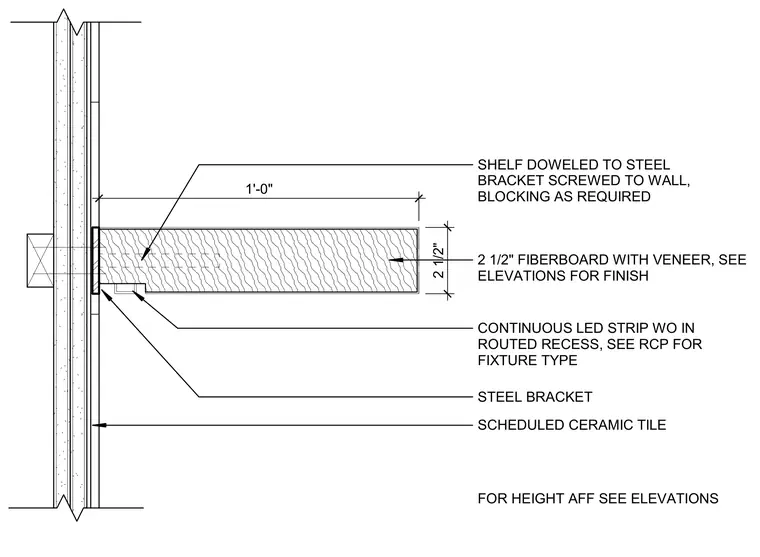

A two-and-a-half-inch thick fiberboard shelf with veneer is doweled to a steel bracket screwed to the wall over scheduled ceramic tile. The steel bracket supports the shelf projecting one foot outward, with internal blocking provided as required. A continuous LED strip is recessed into a routed channel on the underside of the shelf. Height above finished floor is determined per interior elevations.
SCHEDULED CERAMIC TILE 2 1/2" FIBERBOARD WITH VENEER, SEE ELEVATIONS FOR FINISH 1'-0" FOR HEIGHT AFF SEE ELEVATIONS SHELF DOWELED TO STEEL BRACKET SCREWED TO WALL, BLOCKING AS REQUIRED STEEL BRACKET 2 1/2" CONTINUOUS LED STRIP WO IN ROUTED RECESS, SEE RCP FOR FIXTURE TYPE
