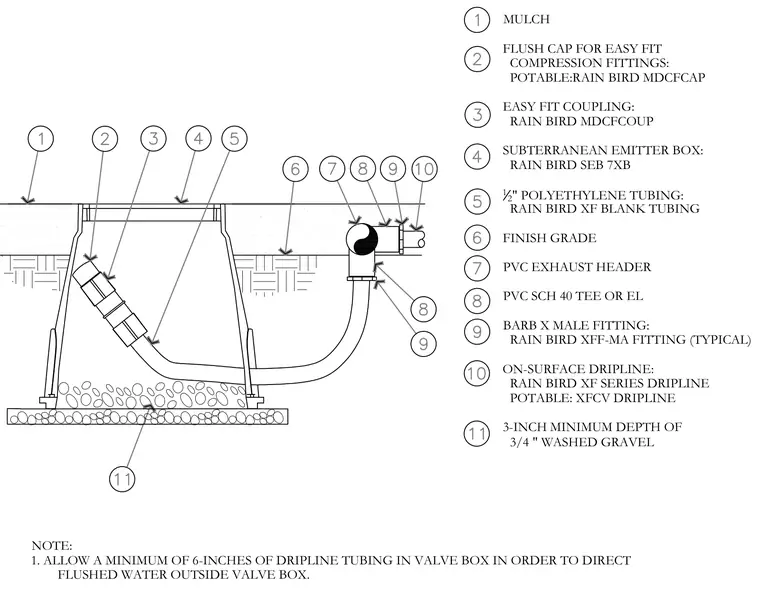

An on-surface dripline flush point installation connects an irrigation line to a PVC exhaust header housed within a subterranean emitter box. A PVC Schedule 40 tee or elbow connects via a barb by male fitting to half-inch polyethylene blank tubing and an XF series dripline. The emitter box rests on a minimum three-inch depth of three-quarter-inch washed gravel at finish grade beneath a mulch layer. A flush cap with easy-fit compression fittings terminates the line inside the box, allowing a minimum of six inches of dripline tubing to direct flushed water outside the enclosure.
MULCH FLUSH CAP FOR EASY FIT COMPRESSION FITTINGS: POTABLE:RAIN BIRD MDCFCAP EASY FIT COUPLING: RAIN BIRD MDCFCOUP SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " POLYETHYLENE TUBING: RAIN BIRD XF BLANK TUBING FINISH GRADE PVC EXHAUST HEADER PVC SCH 40 TEE OR EL BARB X MALE FITTING: RAIN BIRD XFF-MA FITTING (TYPICAL) ON-SURFACE DRIPLINE: RAIN BIRD XF SERIES DRIPLINE POTABLE: XFCV DRIPLINE 3-INCH MINIMUM DEPTH OF 3/4 " WASHED GRAVEL NOTE: 1. ALLOW A MINIMUM OF 6-INCHES OF DRIPLINE TUBING IN VALVE BOX IN ORDER TO DIRECT FLUSHED WATER OUTSIDE VALVE BOX.
