Mechanical · I-Z9D26

P&ID Control Loop and Instrument Diagram

Elements

About this detail

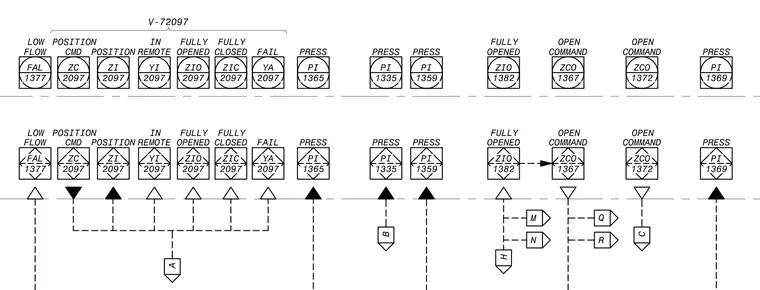

This piping and instrumentation diagram displays control and monitoring points including low flow indicator FAL 1377, position command ZC 2097, valve position indicators ZI 2097 and YI 2097, valve status indicators ZIO 2097, ZIC 2097, and YA 2097 associated with valve V-72097. Pressure indicators PI 1365, PI 1335, PI 1359, and PI 1369 monitor system pressures. Additional interlocks and command points include ZIO 1382, ZCO 1367, and ZCO 1372 with associated relay or signal tags M, N, Q, R, A, B, and C.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
