Interiors · I-YXA3H

Resin Panel to Metal Tube Support Connection

Materials

About this detail

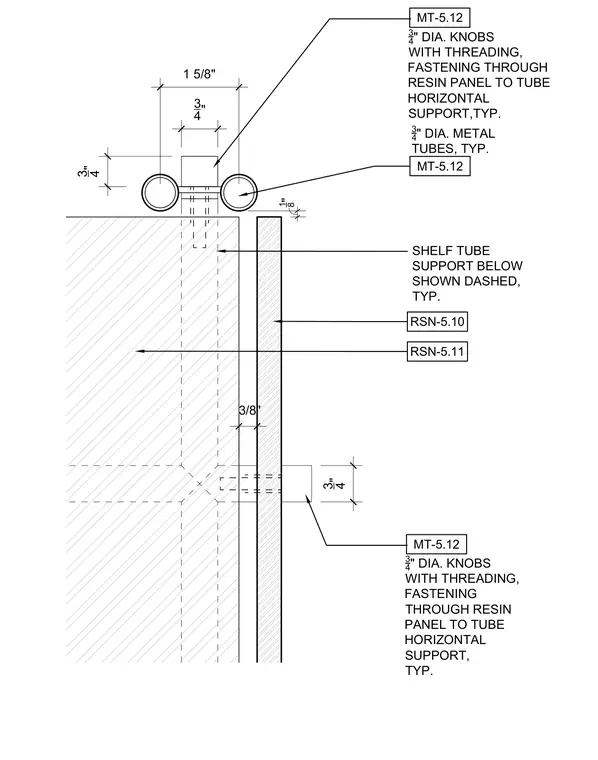

A resin panel is fastened to a tubular metal support framing system using three-quarter-inch diameter threaded knobs passing through the panel into the tube horizontal support. Three-quarter-inch diameter metal tubes run vertically along the assembly while a shelf tube support is positioned below and shown dashed. Material callouts designate the resin panels as RSN-5.10 and RSN-5.11 and the metal tubes as MT-5.12.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
